looking forward to seeing your work. i may be doing something like this one day.



I have the measurements I think for all I need except the plate that bolts to the back of the tractor so if anyone has the time and could do me a big favor... I sure could use some measurements

I've been looking for the same thing. I have the lower arms and lift links just need the base measurements.



Leaving for the morning right now. Will make some measurements when I get back if you don't have them by then. I need to remake the lift links for mine. First effort was not quite right. Probably woun't be back until this afternoon.



I am trying to get the lift links done this week, just need to go pick up a piece of 1/2 " round bar.
Thanks for taking the time to get some measurements for us hamman.



Got back a little bit ago and will take some pics and make the measurements to post. Be patient I am still learning the working of this computer. :thThumbsU



Take your time :trink40: I just appreciate you taking the time to help.
thank you



Ok, here is a picture with some measurements on it. I am learning how to use paint and post the picture at the same time. I do not have an angle finder to get you the degree of angles on the handle. Feel free to ask questions and I will try to answer them. I hope it helps.



Any chance you could post a larger pic, I'm unable to read the measurements. File size is to small. This is just what I've been looking for. :thanku: Cjet69



There are two 3 point hitches for that tractor. I have both. Which one are you trying to build?

Also the one in the photo is missing the handle extension.



Hamman, go back to your editing program and increase the font size, then crop out part of the handle. Hopefully, that will get it readable.



I am trying to get this readable for you but I may have to wait for my son to get home to help me. This hitch does not have the extension on it my other one on the tractor does. Roger



Having problems with my paint program will redo in the morning.

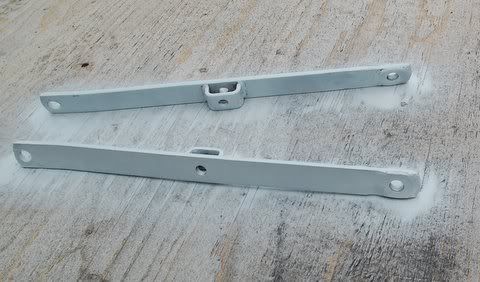

Well I have been busy but did manage to get a few more things made, I just need to tackle the hard part have to excuse the mess as my shop is small ..

I could use some base plate measurements if anyone has the time ?

I did manage to get the hood painted not great but it will do. Add the new decals when I get them and then maybe clear coat it.
The broken grill will be fixed next weekend I hope.

And it got a sexy new Kevlar blue belt



Umaxman

I'll need to be doing some work to the three point base that I have.

I'll see if I can make some measurements & get some pictures for you, if no one else beats me to the punch.

Thanks



Thanks that would be a big help mdigby, I appreciate the help :trink39:



:sorry1: Really hate to bother anyone but I could use some measurements ? ...please and thanks



Again, there are two 3 points for that tractor with two deferent base plates and lift arms. I have both of them and would be more then happy to photograph and measure one if I know which one.

The one on the tractor is model # 917-253060 and the one off the tractor is 917-251780



The picture you posted is the same as the one hamman posted a picture of on page 1 ?
That is the one I would like. They both will fit my tractor ?



There are two 3 point in my photo pick one. One is on the tractor one is setting on the arms.



Sorry I didn't see the second one in your picture. I am not really fussy on which one
Please excuse my ignorance on these hitches as this is all new to me.
The lift rods I made are starting to look like they are to long, I made both pieces from some measurements I got from someone else.
I will look up the part numbers you gave me and have a look, but the one I started to make was the one with the solid four bolt back plate but the other one looks a little easier maybe
Ok I just looked at both, they both do the same thing just different mounting system ?



If you are not going to run a tiller I would use the one that is setting on the arms.

The arms are 18.25” from center of the hole to center of the hole.



I take it that is just a lighter made unit? Running a tiller is a possibility maybe some day but I want a plow and disc set up.



The arms are half as thick for this one and they bend. I have both sets of arms also. There is also 2 kinds of lift handles.
You could make then weld it to a plate later when you get a tiller.
The arms are 18.25” from center of the hole to center of the hole.



Umaxman

The hitch I have is 917.253061

here is the sears diagram

I was able to get measurements for everything BUT the hitch handle itself as it has bends along multiple axes.

Here is the base plate size itself

This is the base plate WITH holes. Note: on my hitch plate the top holes are for 1/2in diam bolts and the lower holes are for 7/16 bolts.

The base plate has two pieces (extensions) welded to the outside where the hitch handle passes through.

The hitch handle has two lift "ears" welded to it. These connect to the lower lift bars to raise the implement when the handle is pushed forward.

I tried to get measurements for the lift handle, but I couldn't figure a way to show the 3d bending on a 2d screen. Maybe someone else (who has a higher wattage bulb) can help you with that part.

I hope it helps.

Mark



Thank you so much mdigby that is exactly what I was looking for ...thank you again.
Now if I didn't have to work the next couple of days I could start trying to make this
I owe you one :trink40:
The handle I think maybe I might be able to figure it out.



Good job on that mdigby. after my first try I can't get my paint program to work. I know umaxman appreciates it.:thThumbsU



I found this pic with some center link and lower arm measurements.



Thanks guys cjet69 not sure where I got it but that was one of the first pictures I got ? I found it a very helpful photo.



mdigby, I am also trying to put one of these together. I could use a couple measurements if you have time. one is from the top of base plate to the center of the upper mounting bolt holes. center link mount location from top of base plate to center of hole and the base plate side flange height. I added some line on your pics to show what I need
