Johnson Loader Project

Well it finally happened. There's a Johnson Loader in my shop just waiting to be mounted up to my 110. At the moment I have two 1964 round fenders, one that I am restoring and one that I can use, not restored. If it wasn't for forums like this I wouldn't even know that they even made a FEL for this tractor. So after extensive searching and patience I was able to make a deal happen on craigslist. So I wanted to share my project the best I can also. I am pretty sure I have all the parts I need except for some bolt and maybe some pins. It also looks like I may have too replace some hydraulic hoses right off the bat too. Not really sure how the ballast box is supposed to bolt up either, but I'm sure that will the least of my worries.
Are there any issues installing this onto a 64 110? Most loaders I have seen, have been on 112's with 10hp motors and 5 bolt hubs.
What was the original color of this loader? previous owner said it was a goldish/yellow. I've seen some that were white.
This will be a slow project as I have been working all the time lately, but any help or input is greatly appreciated!
Attached Thumbnails
Click image for larger version

Name:	johnson 5.jpg
Views:	216
Size:	140.0 KB
ID:	2345765   Click image for larger version

Name:	johnson 4.jpg
Views:	206
Size:	157.7 KB
ID:	2345767   Click image for larger version

Name:	johnson 2.jpg
Views:	208
Size:	162.4 KB
ID:	2345771   Click image for larger version

Name:	johnson 1.jpg
Views:	224
Size:	162.9 KB
ID:	2345773

Click image for larger version

Name:	johnson 7.jpg
Views:	198
Size:	152.6 KB
ID:	2345775   Click image for larger version

Name:	johnson 6.jpg
Views:	203
Size:	187.2 KB
ID:	2345777   Click image for larger version

Name:	johnson 8.jpg
Views:	183
Size:	155.0 KB
ID:	2345779   Click image for larger version

Name:	johnson 9.jpg
Views:	178
Size:	146.8 KB
ID:	2345783

Click image for larger version

Name:	8.jpg
Views:	175
Size:	142.1 KB
ID:	2345785


1964 110
1964 110 w/Johnson 10 loader
1987 318
1991 420 w/ 44 Loader
2007 X300 w/bagger

Last edited by oaks1450; 11-10-2018 at 01:11 PM.
oaks1450 is offline
Sponsored Links
Advertisement

post #2 of 221 Old 11-10-2018, 01:15 PM
MTF CSI

poncho62's Avatar

Join Date: Oct 2008
Location: Hanover, Ont, Canada
Posts: 4,165
Barn
Re: Johnson Loader Project

Nice.....kind of interesting how that big bucket attaches to the smaller one.

Ford LGT100
Ford LGT125
Ford LGT145
Ford LGT165
John Deere STX38
Bolens ST120
poncho62 is offline
post #3 of 221 Old 11-10-2018, 01:59 PM
The Admin from... Nowhere

littletractorguy's Avatar

Join Date: Dec 2009
Location: Saskatchewan
Posts: 13,527
Barn
Re: Johnson Loader Project

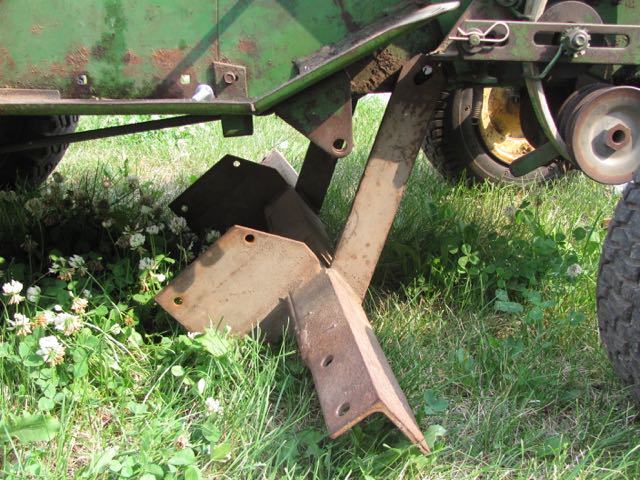

So, the biggest problem you'll have mounting the Johnson 10 to a '64, I figure, is going to be the fact that you'll have to pull your footrests and space them out so you can fit the rear mounting frame for the loader onto the tractor. The '67 frame had slots cut for the loader mount... Here's what my '67 112 footrest looks like.


So with the slots in there, you can do up the front, then just slide the mount up into the slots and do up the rear carriage bolts.

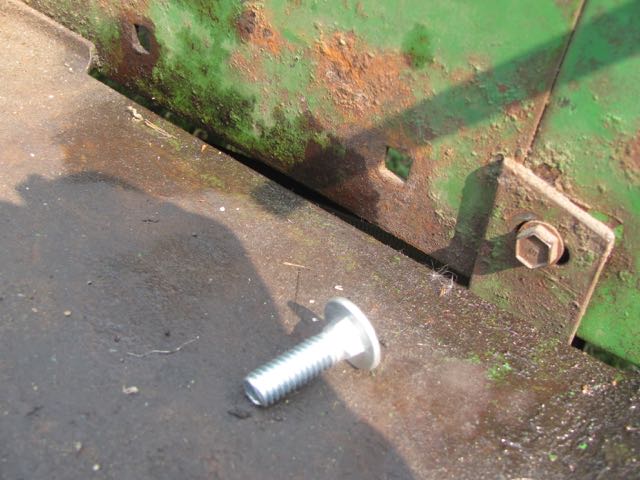

Lemme see if I can find my pix of how I mounted my ballast box... Here's one that shows the straps I made to attach the sides of the box to the tractor:



And then I dropped a very short but pretty massive bolt into the hitch plate hole and tightened it up...

Last edited by littletractorguy; 11-10-2018 at 02:07 PM.
littletractorguy is offline
Sponsored Links
Advertisement

post #4 of 221 Old 11-10-2018, 03:58 PM
OLD TIRED CDN. MECHANIC

Larry LGT 165's Avatar

Join Date: Mar 2013
Location: Ontario, Cda.
Posts: 8,986
Re: Johnson Loader Project

Welcome to the Loader Club....... once you've had one, there's no going back to the wheel barrow.

Larry ( in Southern Ontario )
"Jake Built" 1976 Ford LGT 165 / Johnson 10TC Loader / 54" Snowpusher.
"Jake Built" 1973 White Town & Country / 42" Two Stage Snow Blower.
"Deere Built" 2001? Honda HA 4120 / 48" Power Flow Bagger.
"Hahn Built" 1976 Ford RMT 66 RER / Grandson's first tractor.
Larry LGT 165 is offline
post #5 of 221 Old 11-10-2018, 05:00 PM
3K Poster!!!!

inspectorudy's Avatar

Join Date: Feb 2011
Location: Georgia
Posts: 3,402
Re: Johnson Loader Project

I've got a PDF of an original Johnson 10 manual if you think it would help you. It's for a Cub Cadet but it has a lot of specs and pictures in it. Send me a PM with your email address and I will send it to you.
Rudy
Attached Thumbnails
Click image for larger version

Name:	Johnson 10.JPG
Views:	130
Size:	144.3 KB
ID:	2345791

Last edited by inspectorudy; 11-10-2018 at 05:07 PM.
inspectorudy is online now
post #6 of 221 Old 11-10-2018, 05:59 PM
Parts collector

mopar65pa's Avatar

Join Date: Mar 2009
Location: Manheim PA
Posts: 2,457
Re: Johnson Loader Project

Good deal I wold love to have a FEL for one of my tractors.

Been driving Deeres since 1974, Dodges since 1984, and Davidsons since 2004. Love my wife and kids I'm a blessed man.

1970 140 H1
1977 300 H2
1983 314 H1 for sale
110 parts tractor for sale
198? 332 50" deck
300 series #33 tiller
Single piston dirt/snow plow
piston lift snow blower
Hand made pintle hitch
Bradley plow, harrow, and disc.
mopar65pa is offline
post #7 of 221 Old 11-10-2018, 06:04 PM Thread Starter
Senior MTF Member

oaks1450's Avatar

Join Date: Apr 2017
Location: PA
Posts: 224
Barn
Re: Johnson Loader Project

Ok thanks Littletratorguy for the info. Guess I値l have to figure out some sort of spacer for the foot rests. Also nice to see how the ballast box is mounted to you tractor and explains the holes in the side of my box.

Thanks Inspectorudy for the manual

Took the mower deck off and hangers off the 110 today after work and moved the 318 out to the shed for more room and brought the 110 in.
Attached Thumbnails
Click image for larger version

Name:	E9FF9CA3-69DB-497D-940E-254548D22DB6.jpeg
Views:	85
Size:	3.03 MB
ID:	2345813


1964 110
1964 110 w/Johnson 10 loader
1987 318
1991 420 w/ 44 Loader
2007 X300 w/bagger
oaks1450 is offline
post #8 of 221 Old 11-10-2018, 07:22 PM
MTF CSI

poncho62's Avatar

Join Date: Oct 2008
Location: Hanover, Ont, Canada
Posts: 4,165
Barn
Re: Johnson Loader Project

Would a loader not be more suited to a 318?.....Power steering and all that jazz.....just wondering

Ford LGT100
Ford LGT125
Ford LGT145
Ford LGT165
John Deere STX38
Bolens ST120
poncho62 is offline
post #9 of 221 Old 11-10-2018, 08:11 PM Thread Starter
Senior MTF Member

oaks1450's Avatar

Join Date: Apr 2017
Location: PA
Posts: 224
Barn
Re: Johnson Loader Project

I知 sure power steering would make things easier, but I知 hoping with the size of this loader being so small it痴 not such a burden to steer. We値l see soon enough.
Just got done taking off the floor boards and was able to do a temporary mock up with some spare nuts and bolts I had laying around. Plan on getting what you see here bolted up tomorrow after work. Also try and figure out what i知 gonna use for a spacer between the frame and floor boards.
Also took off the PTO. I imagine the hydraulic pump bolts up somewhere in this area.
Attached Thumbnails
Click image for larger version

Name:	DAD59DB7-7079-431D-9E7B-B70509BCA354.jpeg
Views:	174
Size:	2.91 MB
ID:	2345829   Click image for larger version

Name:	001E35AB-03F9-4DBA-8B68-CFF3D6FB0715.jpeg
Views:	125
Size:	3.38 MB
ID:	2345831   Click image for larger version

Name:	D7FE343C-0740-4BDD-AE15-17900D6F1314.jpeg
Views:	142
Size:	3.13 MB
ID:	2345833   Click image for larger version

Name:	0CA8BB7E-8B23-4C73-B509-1F6613D05F01.jpeg
Views:	121
Size:	2.65 MB
ID:	2345835

Click image for larger version

Name:	750949D1-B5F6-4468-8B5E-494514B7C3BE.jpeg
Views:	130
Size:	2.67 MB
ID:	2345837


1964 110
1964 110 w/Johnson 10 loader
1987 318
1991 420 w/ 44 Loader
2007 X300 w/bagger
oaks1450 is offline
post #10 of 221 Old 11-10-2018, 08:35 PM
Proud Member of the 1K Club

lotsofspareparts's Avatar

Join Date: Apr 2017
Location: The beautiful Pacific Northwest
Posts: 1,125
Barn
Re: Johnson Loader Project

The only downside to installing the Johnson 10 on a '64 is the front axle.

It states in the 10 manual that if you are going to install on a '64 that the front axle should be swapped out for the cast axle from the '65-'67. I think in your case it would depend on how you plan to use the loader. Is it more for looks/light duty or are you going to load it to the max every time you use it.

I too have a Johnson 10 on my '65 110. It is the original gold color, which you can see if you look at your subframe and pump bracket. It's great you have a ballast box too, my loader didn't come with one but I have the dimensions to make one (thanks LTG).

Spacing out the footboards was easy, I bought a strip of 1" x 1/4 flat stock steel and just cut them to length. I also replaced all of the carriage bolts since the footboards were now spaced out.

Jared
Attached Thumbnails
Click image for larger version

Name:	IMG_20180903_150815280.jpg
Views:	151
Size:	498.7 KB
ID:	2345839   Click image for larger version

Name:	IMG_20180903_151625004.jpg
Views:	142
Size:	541.8 KB
ID:	2345841   Click image for larger version

Name:	IMG_20180908_151126487.jpg
Views:	121
Size:	249.5 KB
ID:	2345843   Click image for larger version

Name:	IMG_20180908_151152221.jpg
Views:	118
Size:	181.2 KB
ID:	2345845

Click image for larger version

Name:	IMG_20180908_170703914.jpg
Views:	138
Size:	471.1 KB
ID:	2345847   Click image for larger version

Name:	IMG_20180908_171546434.jpg
Views:	148
Size:	398.1 KB
ID:	2345849

Currently in the stable
'97 LX188 - '83 216H - '82 317 - '81 317 - '79 317 - '71 120 - '70 120 - '70 120 - '70 112H Sunset Orange - '70 112H Patio Red - '68 140H3 "Side Tag" - '68 140H3 - '69 140H3 - '68 112H "Side Tag" - '68 112H - '67 112H - '67 112H - '66 110 - '65 110 - '64 110 - '64 110 - '47 Model A

2014 Kubota GR2120

'74 Homelite T-10

'79 Case 446

"Deerely Departed"
'03 GT245 - '84 318 - '83 318 - '74140H3 - '72 140H3 - '70 140H1 - '68 110H - '67 112H - '67110H - '65 110


Last edited by lotsofspareparts; 11-10-2018 at 08:41 PM.
lotsofspareparts is offline
post #11 of 221 Old 11-10-2018, 08:48 PM
Hahn Star


MikMan48's Avatar

Join Date: May 2013
Location: Ontario
Posts: 10,136
Re: Johnson Loader Project

Everyone loves a loader project! Best of luck and I am excited to follow along

Sent from my SM-A520W using Tapatalk



Challenge Met

Have you met "The Fahn" yet?

https://www.mytractorforum.com/189-o...meet-fahn.html
MikMan48 is offline
post #12 of 221 Old 11-10-2018, 09:13 PM
OLD TIRED CDN. MECHANIC

Larry LGT 165's Avatar

Join Date: Mar 2013
Location: Ontario, Cda.
Posts: 8,986
Re: Johnson Loader Project

Been reading thru this thread with interest.

I don't think anyone has mentioned that the Johnson Workhorse 10 with the single bucket curl cylinder was also known as the Johnson "Midget" Loader.

Johnson themselves named it as such and this may help with your searches for pics or info.

They later became the Johnson Workhorse 10TC, TC being twin cylinder.

Larry ( in Southern Ontario )
"Jake Built" 1976 Ford LGT 165 / Johnson 10TC Loader / 54" Snowpusher.
"Jake Built" 1973 White Town & Country / 42" Two Stage Snow Blower.
"Deere Built" 2001? Honda HA 4120 / 48" Power Flow Bagger.
"Hahn Built" 1976 Ford RMT 66 RER / Grandson's first tractor.
Larry LGT 165 is offline
post #13 of 221 Old 11-10-2018, 09:20 PM
The Admin from... Nowhere

littletractorguy's Avatar

Join Date: Dec 2009
Location: Saskatchewan
Posts: 13,527
Barn
Re: Johnson Loader Project

Oh yeah, the PTO clutch can't stay on there, as that's where the pump mounts...



I wound up using one of those jointed adjustable size belts since I couldn't find one the right length. Let me know if you need any pics of the pump mount, I can go out and fire some off...
littletractorguy is offline
post #14 of 221 Old 11-10-2018, 09:28 PM Thread Starter
Senior MTF Member

oaks1450's Avatar

Join Date: Apr 2017
Location: PA
Posts: 224
Barn
Re: Johnson Loader Project

Thanks for the pic. I may hit you up later for another pic when I get closer to mounting up the pump. Thanks!


1964 110
1964 110 w/Johnson 10 loader
1987 318
1991 420 w/ 44 Loader
2007 X300 w/bagger
oaks1450 is offline
post #15 of 221 Old 11-11-2018, 10:11 AM
The Admin from... Nowhere

littletractorguy's Avatar

Join Date: Dec 2009
Location: Saskatchewan
Posts: 13,527
Barn
Re: Johnson Loader Project

Quote:
Originally Posted by oaks1450 View Post
Thanks for the pic. I may hit you up later for another pic when I get closer to mounting up the pump. Thanks!
No problem! How different IS the front axle on a 64 versus a 65 and newer? I can't tell from the new JD parts site. I may have a spare cast axle from a '66 hanging around...
littletractorguy is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the MyTractorForum.com - The Friendliest Tractor Forum and Best Place for Tractor Information forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in











Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
